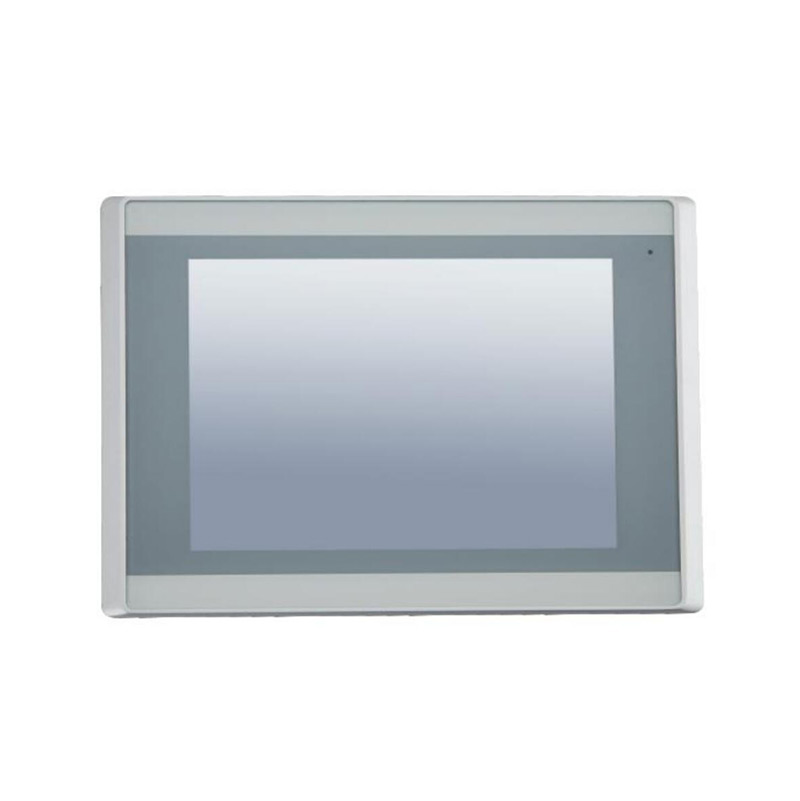

8 "Industrial tablet
SpecificationsPerformanceResources
Specifications

Intel  J1900 CPU

One DDR3L SODIMM memory slot with up to 8GB of memory

LCD+ HDMI dual display, synchronous/asynchronous mode

Full-plane touch screen, front panel IP65 protection rating

Low power consumption no fan

9 ~ 36V wide voltage input


Performance

Product Specification

System

Name: 8-inch Industrial Tablet Computer

Processor: Intel Celeron J1900 2.0GHz Turbo frequency to 2.42GHz

System memory: One SODIMM slot, with a maximum support of 16GB

Network

2x GbE RJ45 Realtek8111H

3xUSB2.0, 1xUSB3.0

2x DB-9 COM1&COM2, RS-232/485

2 x3-wire COM3&COM4 RS 232/485 Phoenix terminals

2 x3-wire COM5&COM6 RS-232 Phoenix terminals

1/0 interface

1 x Audio Line -out

2x801W power amplifier output (optional)

1x Phoenix Terminal remote switch interface

1 x HDMI

1x12-bit GPIO (optional)

1x mSATA

Storage: 1xSATA(2.5" SATA

Expansion slot

Mini-PClex1 full card, with an on-board SIM card slot, supports 3G/4G modules

Mini-PClex1 half-card, supporting WIFI and Bluetooth

Watchdog timer: Programmable setting from 1 to 255 seconds

Supported systems: Windows 7/8/10,WES 7,LINUX

Structure

Material: Aluminium

Installation method: VESA75/ panel installation

Dimensions: 230.3x 177.3 x 50.5 mm

Weight: 1.7KG

Usage environment

Operating temperature: 0°C - 60 °C

Storage temperature: -30 °C to 70°C

Storage humidity: 10-90% at 30 ° C, no condensation

Power supply

Power input: DC9-36V 2-pin Phoenix terminal

Display screen

LCD type: 8" TFT-LCD

Resolution: 800x 600(1024 x 768 optional)

Maximum color: 16.2M

Brightness: 250 cd/m 2

Viewing Angle (CR>=10) 85~85° (H), -85~85° (V)

Backlight: LED

Backlight lifespan (hours) : 30,000

Touch screen

Type: 5-wire resistive screen, 10-point capacitive screen

Transmittance: 78%, greater than 85%

Service life: 10 million clicks with a force of 250 grams, hardness of 7H


Ordering information

 Material code Description

  8”TFT LCD ICapacitive touchI J1900 CPU I SO-DIMM I 3xUSB2.0,1x USB3.0 | 2x LAN I 6 x COM l1xPower Adapter

  8" TFT LCD IResistive touchI J1900 CPU I SO-DIMM I 3xUSB2.0,1x USB3.0 I 2x LAN I 6 x COM |1xPower Adapter
